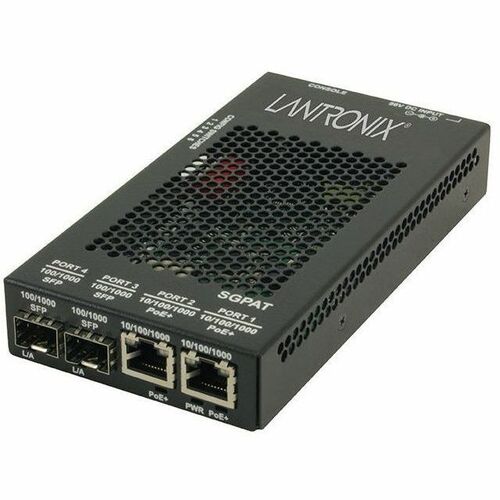

Lantronix 2 10/100/1000 POE+RJ-45TO 2 OPENDUALSPEEDSFPPORTMEDIACONVERTER SGPAT1040-305-NA
$432.12
2 10/100/1000 POE+RJ-45TO 2 OPENDUALSPEEDSFPPORTMEDIACONVERTER
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Lantronix SGPAT1040-305 Transceiver/Media Converter – 2 x Network (RJ-45) – 2x PoE+ (RJ-45) Ports – Gigabit Ethernet – 10/100/1000Base-T, 1000Base-X – 1000 Mbit/s – 0.10 km – 2 x Expansion Slots – SFP – 2 x SFP Slots – AC/DC – Wall Mountable, DIN Rail Mountable, Standalone, Tabletop, Shelf Mount – TAA Compliant
Features
- Wall mount, DIN Rail, or table top
- External AC/DC power supply included
- 2-port 10/100/1000 copper to fiber media conversion with IEEE 802.3at PoE+ on the copper port
- Supports full 30 Watts of power to each twisted pair port
- Various fiber versions available supporting fixed SC, LC, and open SFP
- 3-port version offers (1) RJ-45 PoE+ port and (2) open SFP slots, device can be configured as a 3-port switch or as a 2-port media converter with redundant fiber links
- With redundant fiber enabled, supports a 50ms fail-over time
- 4-port version offers (2) RJ-45 PoE+ ports and (2) open SFP slots, device can be configured as a 4-port switch (with or without redundant fiber) or as two independent PoE+ media converters in one housing
- SFP slots can support 100Base-FX, 1000Base-X, or SGMII based (MSA compliant) SFP modules
- Supports Auto-Negotiation, Auto-MDI/MDIX, Active Link Pass Through (ALPT), and Remote Fault Detection
Tech Specs
| Basic | |
|---|---|
| Product Type | Transceiver/Media Converter |
| Maximum Distance Supported | 0.10 km |
| Power Source | AC/DC |
| Form Factor | DIN Rail Mountable |
| Form Factor | Shelf Mount |
| Form Factor | Standalone |
| Form Factor | Wall Mountable |
| Form Factor | Tabletop |
| Network Technology | 1000Base-X |
| Network Technology | 10/100/1000Base-T |
| Brand Name | Lantronix |
| Expansion Slot Type | SFP |
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Product Family | SGPAT |
| Number of PoE+ (RJ-45) Ports | 2 |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Total Number of Ports | 2 |
| Total Number of Expansion Slots | 2 |
| PoE Port Type | PSE |
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | SGPAT1040-305-NA |
| Manufacturer Website Address | http://www.lantronix.com |
| Manufacturer | Lantronix, Inc |
| Product Model | SGPAT1040-305 |
| Product Name | SGPAT1040-305 Transceiver/Media Converter |
| Product Series | SGPAT |
| Brand Name | Lantronix |
| I/O Expansions | |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Total Number of Expansion Slots | 2 |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of PoE+ (RJ-45) Ports | 2 |
| Total Number of Ports | 2 |
| PoE Port Type | PSE |
| Media & Performance | |
| Maximum Distance Supported | 0.10 km |
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Miscellaneous | |
| Additional Information | (2) 10/100/1000Base-T PoE+ (RJ-45) [100 m/328 ft.] to (2) 100/1000Base-X Open SFP Slot |
| Application/Usage | Data |
| Application/Usage | Network |
| Package Contents |
|
| Certifications & Standards | EN55022 Class A, EN55024, CE Mark, Power Supply is UL listed |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Network & Communication | |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 1000Base-X |
| Ethernet Technology | Gigabit Ethernet |
| Physical Characteristics | |
| Weight (Approximate) | 2 lb |
| Form Factor | Standalone |
| Form Factor | Wall Mountable |
| Form Factor | Tabletop |
| Form Factor | Shelf Mount |
| Form Factor | DIN Rail Mountable |
| Height | 1″ |
| Width | 3.3″ |
| Depth | 4.8″ |
| Power Description | |
| Input Voltage | 56 V DC |
| Power Source | AC/DC |
| Power Consumption | 65.50 W |
